MP®-1000/MultiPro®
DESCRIPTION
MP®-1000/MultiPro® is an eco-friendly high performance autoclaved calcium silicate board endorsed by third party accreditation bodies for green building product label. It does not contain any harmful substances or inorganic fibres and is free from formaldehyde and toxic emissions. MP®-1000/MultiPro® is versatile for both internal & semi-exposed use which has very high levels of performance in the presence of severe damp environments and has good resistance to fire. The superior non- flammable nature of MP®-1000/MultiPro® conforms to non-combustible when tested in accordance with European Building Classification EN 13501-1: Class A1, BS 476: Part 4, JIS A 1312 and AS/NZS 1530.1. The board has good thermal insulation and resists to continuous operating temperature up to 100°C. A MP®-1000/MultiPro steel framed partition is capable to provide 120 minutes fire resistant period. MP®-1000/MultiPro® is an European CE marked building board and conforms to durability tests BS EN 12467- Category C sheet, which is intended for applications subject to heat and moisture. Unlike most wood based panels, gypsum plasterboards or magnesium silicate boards, MultiPro®/MP®-1000 is durable and immune to insects and vermin, unaffected by dilute chemicals. It is dimensionally stable and will not warp, swell or decay in wet area. Also an ideal economical building board material with good thermal and acoustic properties replaces conventional non-loadbearing masonry block wall constructions.
MP®-1000/MultiPro® is off-white in colour and has a sanded smooth surface on one side and a slightly textured reverse. It is made of fire resistant minerals and calcium silicate matrix reinforced with selected cellulose fibres and special fillers. The
board has undergone a sophisticated process and then cured by an autoclaving process where high pressure and high temperature
steam is induced to ensure its intrinsic fire resistant property and excellent dimensional stability, wherever MP®-1000/MultiPro® is
exposed to fire or humid environments. MP®-1000/MultiPro® contains no water soluble additives and will not rot, degrade or deteriorate. The fibre-reinforced calcium silicate matrix will absorb water causing some loss of strength, which is fully recovered on drying. Any staining on the board caused by leakage can be easily painted over. Moisture will not cause leaching or efflorescence and has no permanent effect on MP®-1000/MultiPro®. It is simple to work with and easy to decorate.
MP®-1000/MultiPro® is manufactured to Quality Management System Certification ISO 9001, Environmental Management System Certification ISO 14001, Hong Kong Green Label as well as Singapore Green Label.
PROPERTIES
TECHNICAL PERFORMANCE
MP®-1000/MultiPro® is eco-friendly CE Marked and non-combustible calcium silicate matrix board to EN 13501-1: Class A1. It has superior fire resistance performance and excellent dimensional stability subject to heat or severe moisture environments.
| TEST | STANDARD | RESULT |
|---|---|---|
| Density | BS EN 12467 | 1000 kg/m3 +/-10% |
| Nominal weight | 6.6kg/m2 - 6mm 9.9kg/m2 - 9mm 12.6kg/m2 - 12mm |
|
| Size | 1220 x 2440mm 1200 x 2400mm |
|
| Surface alkalinity | pH 7-10 | |
| Flexural strength | ISO/TR 1896 | 7.0 N/mm2 - transverse 10.0 N/mm2 - longitudinal |
| Sag when suspended at 610mm span | ambient | <1mm |
| TEST | STANDARD | RESULT |
|---|---|---|
| Durability and strength tests | CE Mark BS EN 12467 |
Endurance Class: Category B sheet, intended for semi exposed applications where are subjected to heat, moisture and occasional frost |
| Freeze-thaw | BS EN 12467 | Pass, 25 test cycles of test No alteration nor de-lamination after 25 cycles of test at temperature of -20°C ~ 20°C |
| Heat-rain | BS EN 12467 | Pass, for 25 cycles of test |
| Soak-dry | BS EN 12467 | Pass, for 25 cycles of test |
| Warm water | BS EN 12467 | Pass, in water at 60°C for 56 days |
| Water permeability | ASTM C 1185-08 BS EN 12467 |
No formation of drops of water after a 24-hour of test |
| TEST | STANDARD | RESULT |
|---|---|---|
| Moisture movement | ambient to saturated BS EN 12467 |
0.05% +0.06% @23°C, RH 30%~95% |
| Dimensional changes in length due to relative humidity | BS EN 318 | +0.017% @20°C, RH 30%~85% - 0.017% @20°C, RH 85%~30% |
| Moisture content | Ex works - 15% In situ - 6% |
|
| Water absorption | by weight | ~ 48% |
| TEST | STANDARD | RESULT |
|---|---|---|
| Thermal conductivity | EN 12664 | 0.185 W/mK |
| Linear thermal expansion | BS EN ISO 10515-8 | -1.7x1E-6/°C |
| Resistance to continuous heating | In-house | 100°C |
| Fire rated systems | BS 476: Part 22 BS EN 1363-1 |
up to 120 minutes |
| Non-combustible | AS 1530.1 BS 476: Part 4 BS EN ISO 1182 JIS A 1312 |
Pass Ministry of Land & Transport, Japan. Approval No. NM-3768 |
| Heat of combustion | BS EN ISO 1716 | Pass |
| Reaction to Fire - Classification | EN 13501-1 | Euro Class A1 |
| Surface spread of flame | BS 476: Part 7 | Class 1 |
| Fire propagation | BS 476: Part 6 | Class 0 |
| Ignitability | BS 476: Part 5 | Class P |
| Product certification scheme | Singapore | Class 1 & 2 |
| TEST | STANDARD | RESULT |
|---|---|---|
| Green labeled building board | Hong Kong, Singapore | Certified, no heavy metal & no harmful substance |
| Organic emission | ASTM D5116-06 | Non toxic & No formaldehyde, satisfied the emission tests |
| Recyclable product | ISO 14001 | Crushed down for recycle use, Products made under ISO 14001 environmental management system & ISO 9001 quality management system |
| TEST | STANDARD | RESULT |
|---|---|---|
| Acoustic reduction (over range 100-3150 Hz) | AS 1276.1 & 1191 ASTM E90 & E413 EN ISO 10140-3 & 717-1 BS EN 12467 |
STC/Rw (dB) steel framed partition 26 - 6mm 28 - 9mm 29 - 12mm 45 - 91mm 48 - 99mm 55 - 123mm 60 - 214mm |
| All physical performance values of products depicted in this technical handbook are averages based on the standard production. The figures may be changed dependent on the test method used. | ||
APPLICATION
MP®-1000/MulitPro® is versatile for both internal & semi-exposed use. The board has very high levels of performance in the presence of moisture and has good resistance to re. Its dedicated passive re protection systems are extensively tested and technically assessed by international accredited re test consulting engineers. The bre reinforced calcium silicate matrix allows MP®-1000/MulitPro® with good exural strength and resistance to impact. It is easy to curve and cut. Typical applications include:

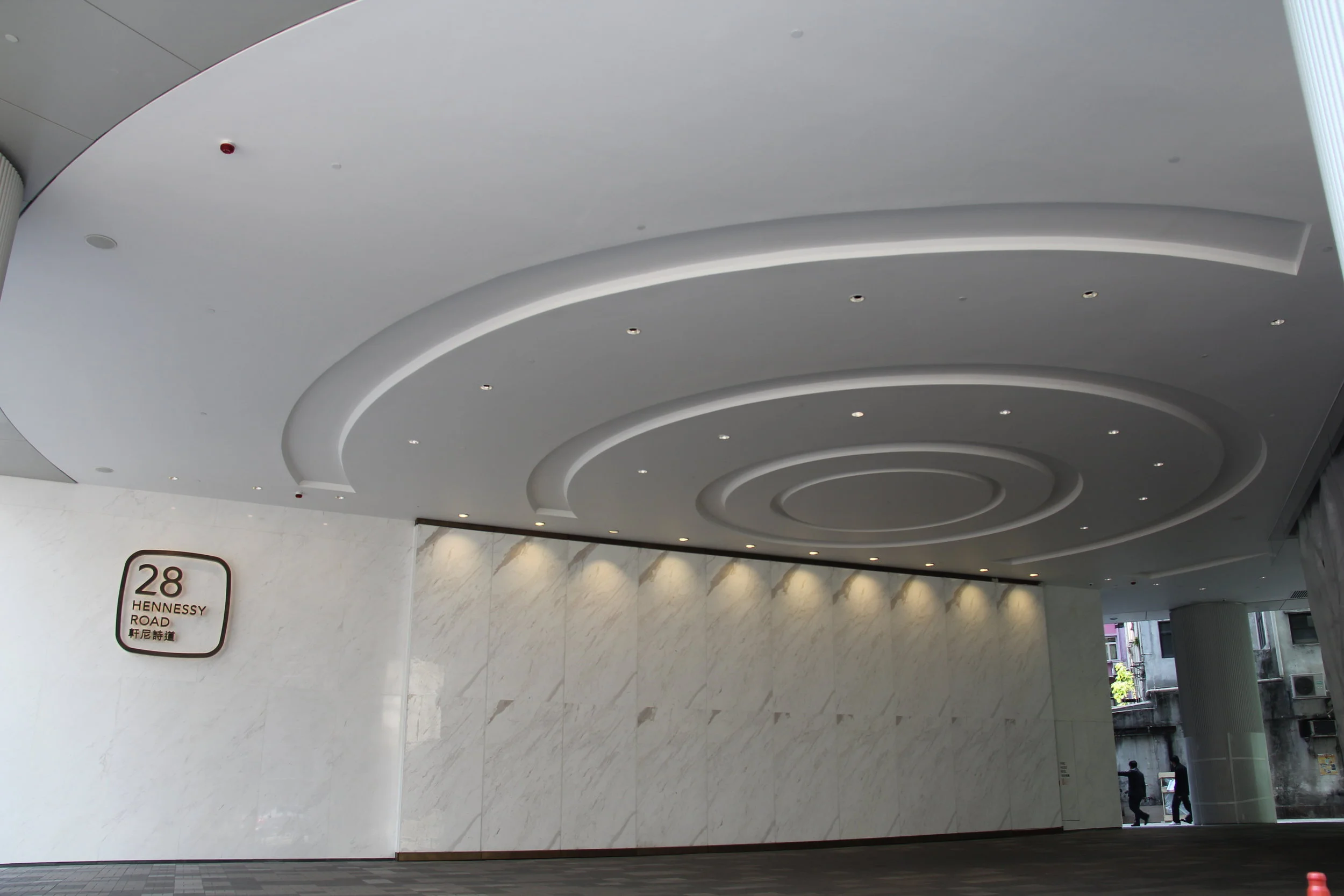

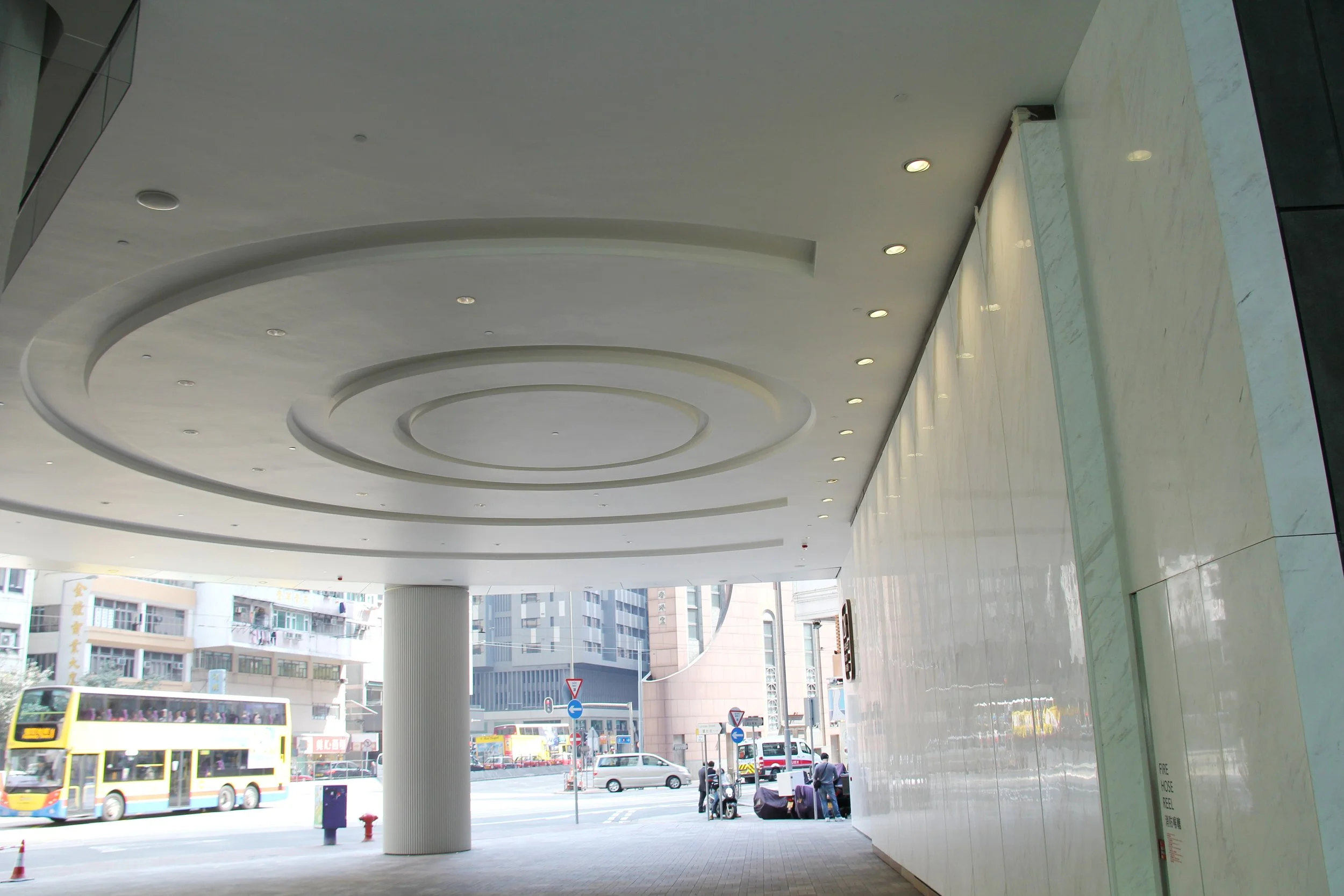

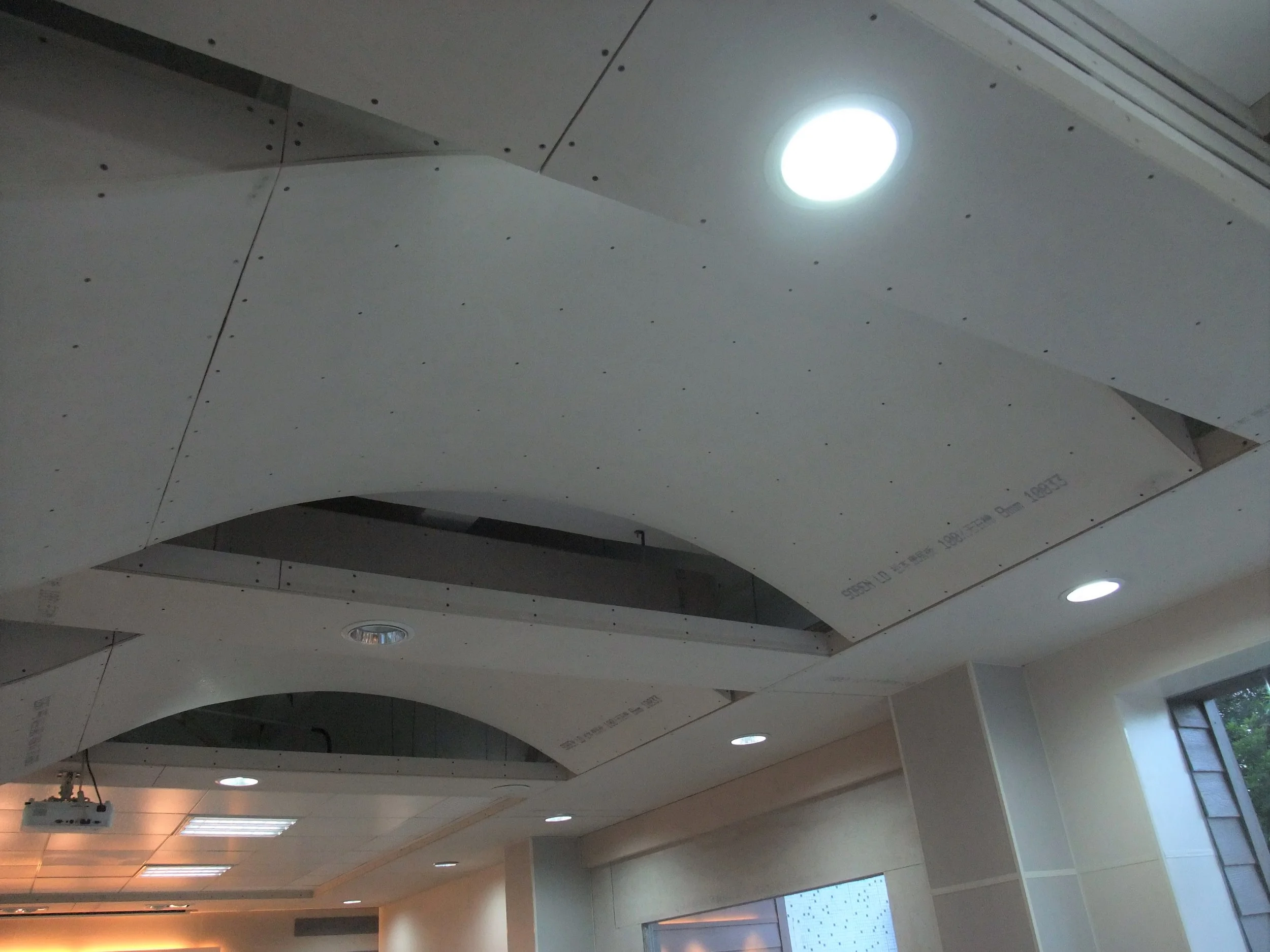

Aesthetic curved ceiling and moisture resistance ceiling
Backing wall for ceramic tiling in wet area
Casings for building services
Fire rated doors
Fire rated backing board for metal claddings
Fire rated industrial wall linings
Fire rated partitions and hoardings
Fire resistant spandrel and smoke barriers
Linings for heating wall/panel
Perforated nishes for acoustic space
Semi-exposed eaves and roof sarking boards
Sound insulated constructions
