Artistic Ceiling

DESCRIPTION

INFO TEST

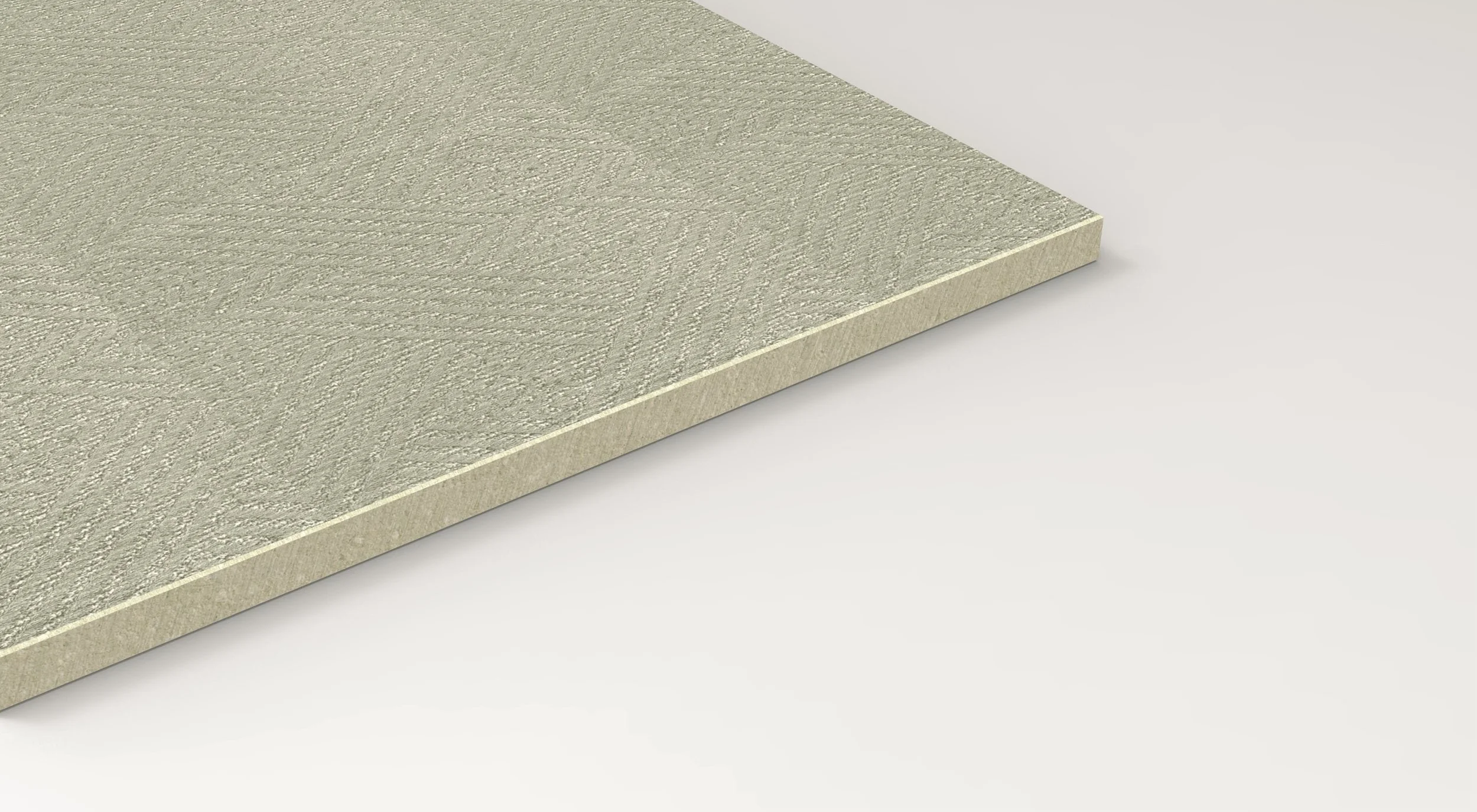

Artistic Ceiling tile is made of eco-friendly autoclaved calcium silicate matrix board. It does not contain any harmful substances or inorganic fibres and is free from formaldehyde and toxic emissions. The calcium silicate matrix board is non-combustible when tested in accordance with European Building Classification EN 13501-1: Class A1, BS 476: Part 4, JIS A 1312 and AS/NZS 1530.1.

Artistic Ceiling offers an economical visually pleasing way to conceal services running underneath structural ceiling or enhance room acoustic treatment.  Three types of aesthetic finish including Acoustic, Textured and Coloured patterns are available for unique design of each building. The ceiling is suitable for applications where are heat, severely humid or semi-exposed to weather. The calcium silicate matrix is durable and immune to insects and vermin, unaffected by dilute chemicals. It is dimensionally stable and will not warp, swell or decay in wet area.

Artistic Ceiling is manufactured to Quality Management System Certification ISO 9001 and Environmental Management System Certification ISO 14001.


Properties


APPLICATION

Artistic Ceiling systems are designed for most commercial and industrial uses. Acoustic Series, coloured series and textured series meet the needs of functional and decorative performance in the following aspects:

  • Offices

  • Libraries

  • Hospitals

  • Entertainment buildings

  • Hotels and restaurants

  • Exhibition centres

  • Washrooms and kitchens

  • Galleries

  • Indoor swimming pools

TECHNICAL PERFORMANCE

x

Artistic ceiling is eco-friendly CE Marked and non-combustible calcium silicate matrix board. It offers dimensional stability and resistance to heat or moisture environments.

x
TEST STANDARD RESULT
Nominal weight 6.4kg/m2 - 4.5mm
7.0kg/m2 - 6mm
Size 595 x 595 x 4.5/6mm
603 x 603 x 4.5/6mm
600 x 1200 x 4.5/6mm
Surface alkalinity pH 7-10
Flexural strength BS EN 12467 ambient ≥ 8.0 N/mm2
Sag when suspended at 610mm span BS EN 12467 ambient < 1mm
x
TEST STANDARD RESULT
Durability and strength tests CE Mark
BS EN 12467
Endurance Class: Category C sheet intended for internal applications where are subjected to moisture and heat
Soak-dry BS EN 12467 Pass
Warm Water BS EN 12467 Pass
Water permeability ASTM C 1185-08
BS EN 12467
No formation of drops of water after a 24-hour of test
x
x
TEST STANDARD RESULT
Non-combustible BS 476: Part 4
BS EN ISO 1182
JIS A 1312
Pass
Approval of Ministry of Land & Transport, Japan
Heat of combustion BS EN ISO 1716 Pass
Reaction to Fire - Classification EN 13501-1 Euro Class A1
x
TEST STANDARD RESULT
Green labeled building board Hong Kong, Singapore Certified, no heavy metal & no harmful substance
Organic emission ASTM D5116-06 Non toxic & No formaldehyde, satisfied the emission tests
Recyclable product ISO 14001 Crushed down for recycle use, Products made under ISO 14001 environmental management system
x
TEST STANDARD RESULT
Sound absorption coefficient ASTM C423-09a NRC ≤ 0.8
Sound absorption class BS EN ISO 354
BS EN ISO 11654
C / D

SPECIFICATION & INSTRUCTION

x
Nominal weight 6.4 kg/m2 -4.5mm
7.0 kg/m2 -6mm
Size 595 x 595mm
603 x 603mm
600 x 1200mm
Thickness 4.5 / 6mm
Colour Acoustic -white
Textured -white
Coloured -white / other colours
Coated with water based acrylic paint
Finish Acoustic -perforated & smooth, acoustic fabric on the back
Textured -slightly textured pattern
Coloured -smooth
Supporting ceiling grid Suspended standard tee or recessed tee grid alumimum ceiling grid
x
Cutting  Rough cuts can be made by scoring the board and snapping over a straight edge.
 Where accurate or simultaneous cutting is required use a fine toothed panel saw. For shaped cuts use a padsaw, keyhole saw or copying saw.
 Power saw uses a tungsten carbide or diamond –tipped blade.
Drilling  Normal low or high speed drills can be used; scrap board placed under the drilling location will ensure a clean hole.
 Cutting and drilling are subject to dust development, proper precautions must be taken by using appropriate duct extract equipment or working at well ventilated area
Planing  The edges can be planed or smoothed with a surform, rasp or file.

AVAILABLE COLOURS

Acoustic Series

Textured Series

Coloured Series

Colours Available

Remark: Reproduction of colours among monitors or devices is variant. The colours that appear on your screen may not be accurate.
