FP®-900/FirePro®
DESCRIPTION
FP®-900/FirePro® is an eco-friendly high performance autoclaved calcium silicate board endorsed by third party accreditation bodies for green building product label. It does not contain any harmful substances or inorganic fibres and is free from formaldehyde and toxic emissions. It is robust and lightweight for use in fire resisting dry construction. The superior non-flammable nature of FP®-900/FirePro® conforms to non-combustible when tested in accordance with EN 13501-1: Class A1, BS 476: Part 4, and AS 1530.1. As revealed from fire tests, FP®-900/FirePro® is capable of resisting fire attack up to 1200°C for 240 minutes when exposed to the heating condition of EN 1363-1. FP®-900/FirePro® fire rated systems delivers passive fire protection to fire compartments, structures, ventilation ductworks, and building services facilities in buildings or civil engineering constructions according to British and European standards. Please consult Soben International for technical information and details of local equivalence.
Proven fire performance of the product and systems are backed by considerable number of fire testing and technical expertise in the design of systems and manufacture. FP®-900/FirePro® is endorsed by CERTIFIRE of Warrington Certification Limited. CERTIFIRE is an independent third party certification scheme for manufacturer that assures performance, quality, reliability and traceability of fire protection products. Recognised by regulatory authorities worldwide, it is an internationally respected mark of fire safety.

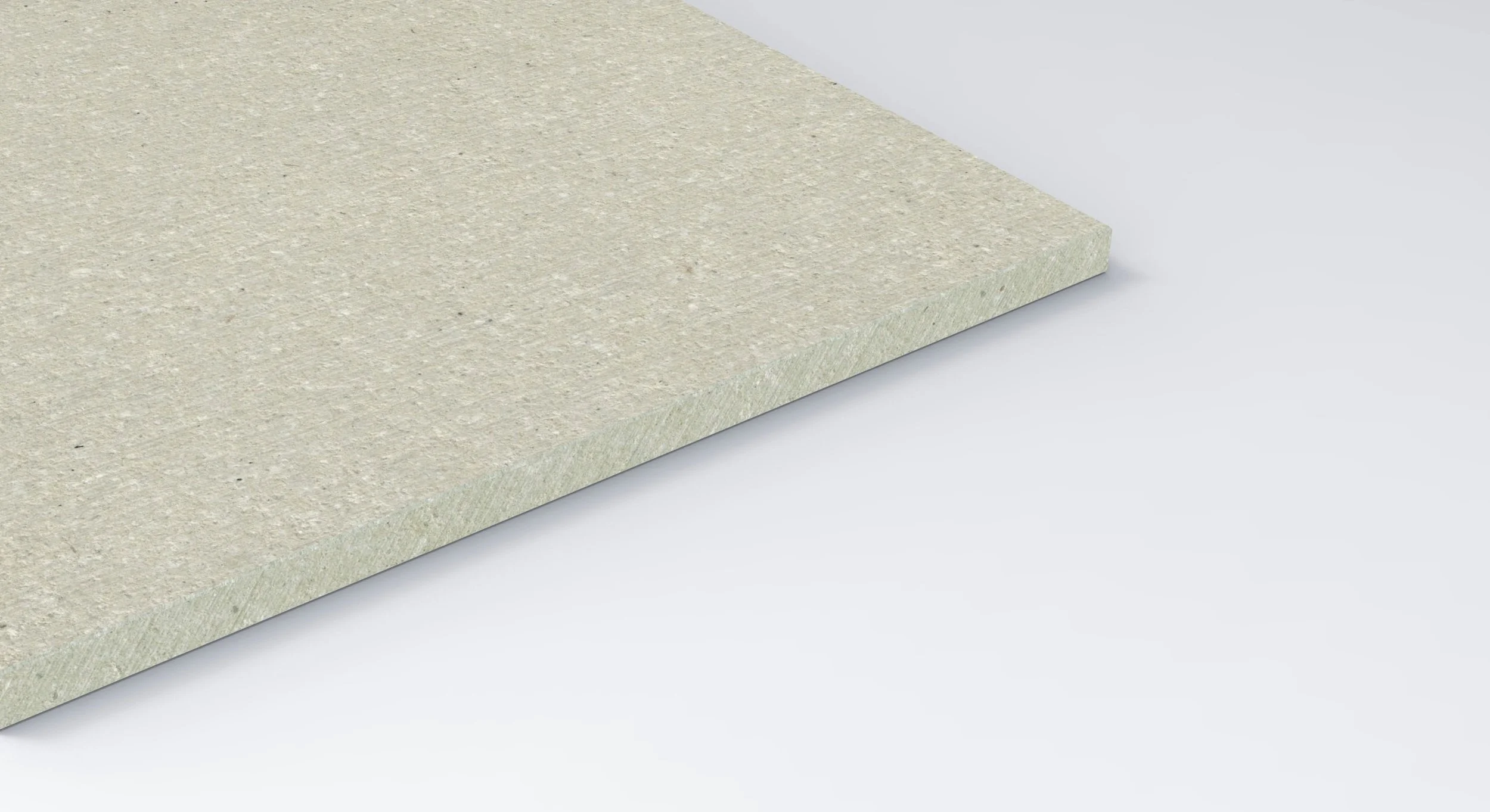

FP®-900/FirePro® is off-white in colour and has a smooth sanded surface on one side and a slightly textured reverse. It is made of fire resistant minerals and calcium silicate matrix reinforced with selected cellulose fibres and special fillers. The board has undergone a sophisticated process and then cured under an autoclaving process where high pressure and high temperature steam is induced to ensure its intrinsic fire resistant property and excellent dimensional stability, wherever FP®-900/FirePro® is exposed to fire or humid environments.
Apart from fire resistance properties, FP®-900/FirePro® is also an ideal building board for use in construction where there is a need for resistance to damp or high humidity. It contains no water soluble additives and will not rot, degrade or deteriorate. Fibre reinforced calcium silicate matrix would absorb water causing some loss of strength, which is fully recovered on drying. Any staining on the board caused by leakage can be easily painted over. Moisture will not cause leaching or efflorescence and has no permanent effect on FP®-900/FirePro®. It is simple to work with and easy to decorate. FP®-900/FirePro® is manufactured to Quality Management System Certification ISO 9001, Environmental Management System Certification ISO 14001, Hong Kong Green Label as well as Singapore Green Label.
PROPERTIES
APPLICATION
FP®-900/FirePro® dedicated passive fire protection systems are extensively tested and technically assessed by international accredited fire test consulting engineers. Typical applications include:
Fire protection of concrete structures
Fire protection of steel structures
Fire protection of tunnel concrete structures
Fire protection systems for modular constructions
Fire rated industrial walls and external walls
Fire rated ceilings, roofs and floors
Fire rated enclosures for dry risers, electrical & mechanical services
Fire rated doors
Fire rated partitions and hoardings
Fire rated shaft walls for lift or building services
Fire rated ventilation, smoke outlet and kitchen extract ducts
Fire resistant barriers and spandrels
TECHNICAL PERFORMANCE
FP®-900/FirePro® is an EN 13501-1: Class A1 non-combustible calcium silicate board. It has superior fire resistance performance and excellent dimensional stability subject to heat or severe moisture environments.
| TEST | STANDARD | RESULT |
|---|---|---|
| Density | BS EN 12467 | 900 kg/m3 +/-10% |
| Nominal weight | 8.9kg/m2 - 9 mm 11.9kg/m2 -12mm 13.8kg/m2 -14mm 14.8kg/m2 -15mm 17.8kg/m2 -18mm 23.7kg/m2 -24mm 26.7kg/m2 -27mm |
|
| Size | 1220 x 2440mm 1200 x 2400mm |
|
| Surface alkalinity | pH 7-10 | |
| Flexural strength | BS EN 12467 ISO/TR 1896 |
6.0 N/mm2 transverse 9.5 N/mm2 longitudinal |
| Minimum bending radius | 7.2m - 9mm, longitudinal 9.8m - 12mm |
|
| Compressive strength - parallel to the plane of board | BS EN 771-2 | 12.5 N/mm2 |
| TEST | STANDARD | RESULT |
|---|---|---|
| Stiffness & impact resistance of partition | BS 5234: Part 2 | Heavy duty |
| Resistance to door slamming | BS 5234: Part 2 | Heavy duty |
| Resistance to crowd pressure | BS 5234: Part 2 | 3kN/m |
| Durability & strength tests | CE Mark BS EN 12467 |
Endurance Class: exceed Category C sheet, intended for applications where are subjected to moisture and heat |
| Water permeability | No formation of drops of water after a 24-hour of test | |
| Soak-dry | Pass, for 25 cycles of test | |
| Freeze-thaw | Pass, for 25 cycles of test | |
| Warm water | Pass, in water at 60°C for 56 days |
| TEST | STANDARD | RESULT |
|---|---|---|
| Moisture movement | ambient to saturated BS EN 12467 |
0.05% +0.045% @ 20°C, RH 30%~95% |
| Dimensional changes in length due to relative humidity | BS EN 318 | +0.01% @20°C, RH 30%~85% - 0.02% @20°C, RH 85%~30% |
| Moisture content | Ex works - 15% In situ - 6% |
| TEST | STANDARD | RESULT |
|---|---|---|
| Thermal conductivity | EN 12664 | 0.17 W/mK |
| Linear thermal expansion | BS EN ISO 10515-8 | -3.06 x 1E-6/°C |
| Fire rated systems | AS 1530.4 BS 476: Part 20-24 BS EN1363-1 & 2 RWS & HC fire in tunnels |
up to 240 minutes |
| Non-combustible | AS 1530.1 BS 476: Part 4 BS EN ISO 1182 |
Pass |
| Heat of combustion | BS EN ISO 1716 | Pass |
| Reaction to Fire - Classification | EN 13501-1 | Euro Class A1 |
| Surface spread of flame | BS 476: Part 7 | Class 1 |
| Fire propagation | BS 476: Part 6 | Class 0 |
| Ignitability | BS 476: Part 5 | Class P |
| Product certification scheme | Singapore | Class 1 & 2 |
| TEST | STANDARD | RESULT |
|---|---|---|
| Green labeled building board | Hong Kong, Singapore | Certified, no heavy metal & no harmful substance |
| Organic emission | ASTM D5116-06 | Non toxic & No formaldehyde, satisfied the emission tests |
| Recyclable product | ISO 14001 | Crushed down for recycle use, Products made under ISO 14001 environmental management system |
| TEST | STANDARD | RESULT |
|---|---|---|
| Acoustic reduction (over range 100-3150 Hz) | AS 1276.1 & 1191 ASTM E90 & E413 EN ISO 10140-3 & 717-1 |
STC/Rw (dB) steel framed partition 26 - 9mm 46 - 99mm 49 - 105mm |
| Note: All physical performance values of products depicted in this technical handbook are averages based on the standard production. The figures may be changed dependent on the test method used. | ||
