WeatherPlank® / WeatherPro® 3D Panel
DESCRIPTION
WeatherPlank® / WeatherPro® 3D panel is autoclaved fibre cement reinforced calcium silicate board (alias named as fibre cement board). This fibre cement board is eco-friendly endorsed by third party accreditation bodies for green building label. It does not contain any harmful substances or inorganic fibres and is free from formaldehyde and toxic emissions. The board has very high levels of durable performance in the presence of wet and severe weather.
WeatherPlank® / WeatherPro® 3D Panel intentionally designed for applications where impact resistance is required in high humid environment. It offers strong technical specification, having CE marked in compliance with durability and aging tests EN 12467: Category A sheet which is for applications where may be subjected to heat, moisture and severe frost weathering conditions. In addition, it also meets the standard of Australia AS/NZS 2908.2 and America ASTM C 1185 for external fibre cement products. WeatherPlank® / WeatherPro® 3D Panel is non-combustible in terms of Reaction to Fire EN 13501-1 Euro Class A1 and BS 476: Part 4, as well as approval in Australia.
Economical and versatile functions make WeatherPlank® / WeatherPro® 3D Panel requiring minimal or free maintenance. Unlike other planks and panels made of timber or vinyl. It is light-weight, robust and water resistant. It will not warp, swell or decay in wet area. This board can be applied in direct weathering applications when used in conjunction with external grade paint finishes. It can hold paint finishes 3-4 times longer than the timber or vinyl.
WeatherPlank® / WeatherPro® 3D Panel is produced from a mixture of cement, ground sand, special cellulose fibres and selected fillers to impart durability, toughness, and water resistance. Aesthetic natural texture is pressed on the board. It is then cured by autoclaving process whereby the ingredients are transformed to crystalline structure under the effects of super-heated steam and high pressure. The synthetic cement silicate binder provides exceptional dimensional stability and an unrivalled resistance to movement due to effects of moisture or heat. The board will not rot or support fungal growth and is unaffected by sunlight and steam. It will not degrade with time and within normal applications, the life of the product is limited only by the durability of the supporting structure and materials used in fastening.

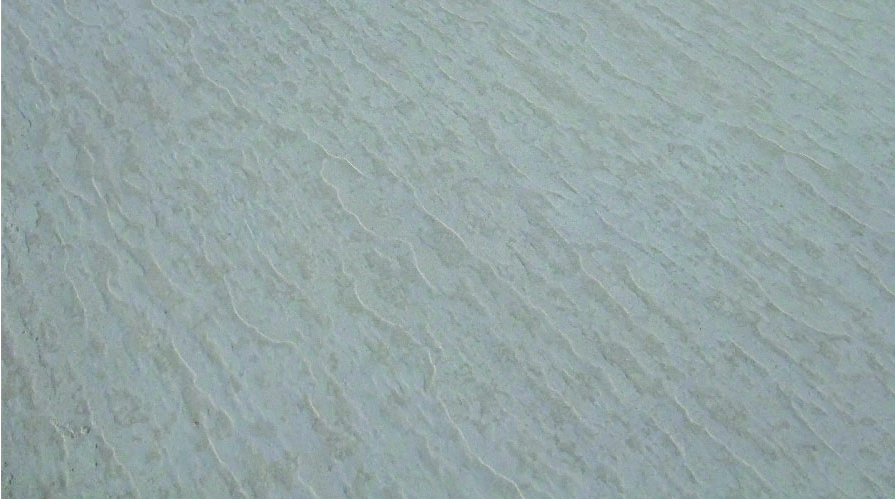

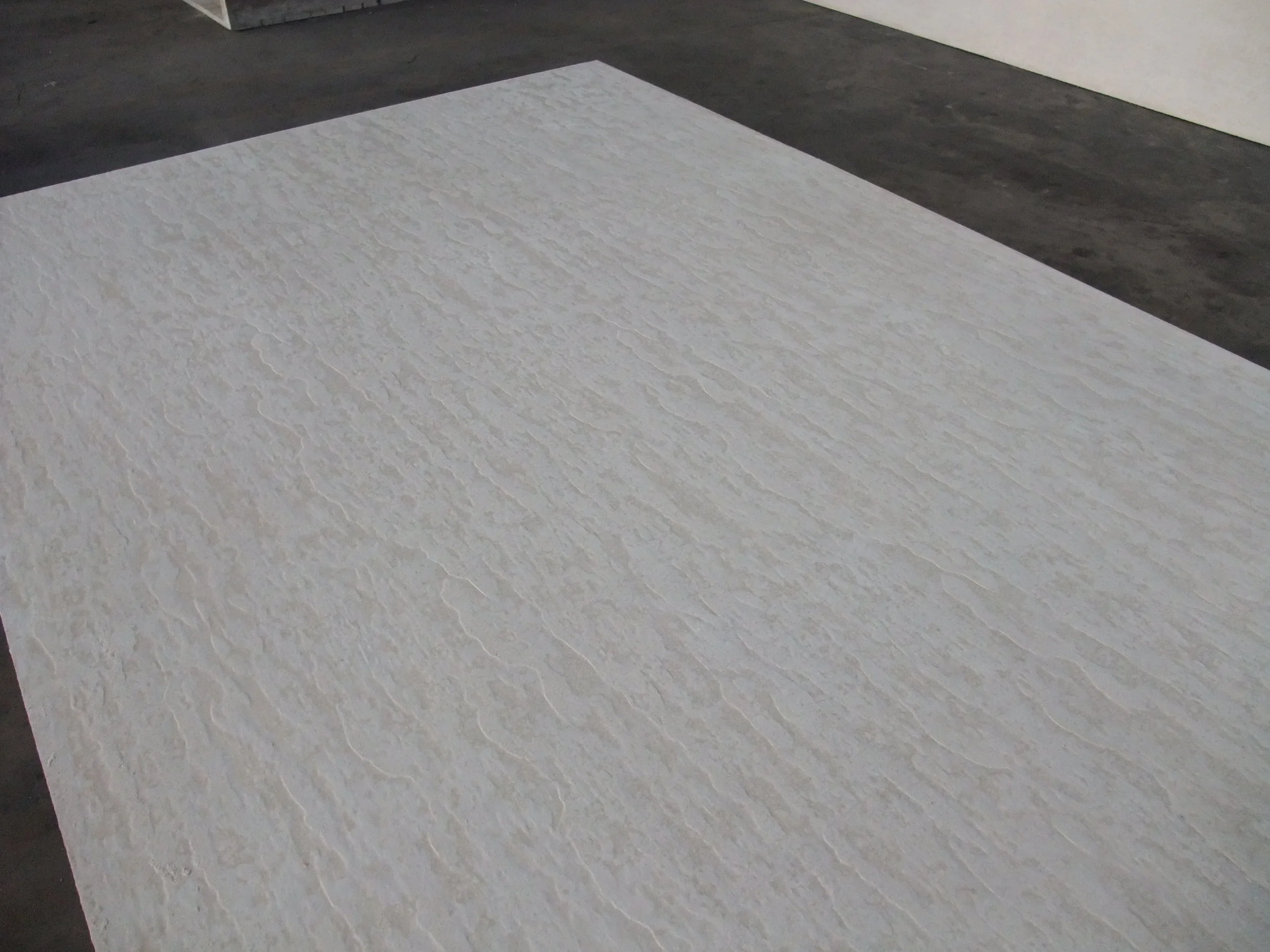

The board does not contain any soluble ingredients or free alkali which could be dissolved by moisture or condensation and causing unsightly marks or efflorescence. If exposed to moisture, the board will completely recover on drying out, with no permanent loss of strength. Any staining on the board caused by leakage can be easily painted over. WeatherPlank® / WeatherPro® 3D Panel is natural off white in colour and has wood-like or stone-like finish on one side and a slightly textured reverse.
WeatherPlank® / WeatherPro® 3D Panel is manufactured to Quality Management System Certification ISO 9001, Environmental Management System Certification ISO 14001, Hong Kong Green Label as well as Singapore Green Label.
PROPERTIES
APPLICATION
WeatherPlank® & WeatherPro® 3D Panel are fibre reinforced cement boards with embossed texture for both internal & external use. It has very high levels of durable performance in the presence of wet and severe weather. The fibre cement reinforced calcium silicate matrix allows the board with good flexural strength and resistance to impact. It is easy to curve, cut and fix. Typical applications include:

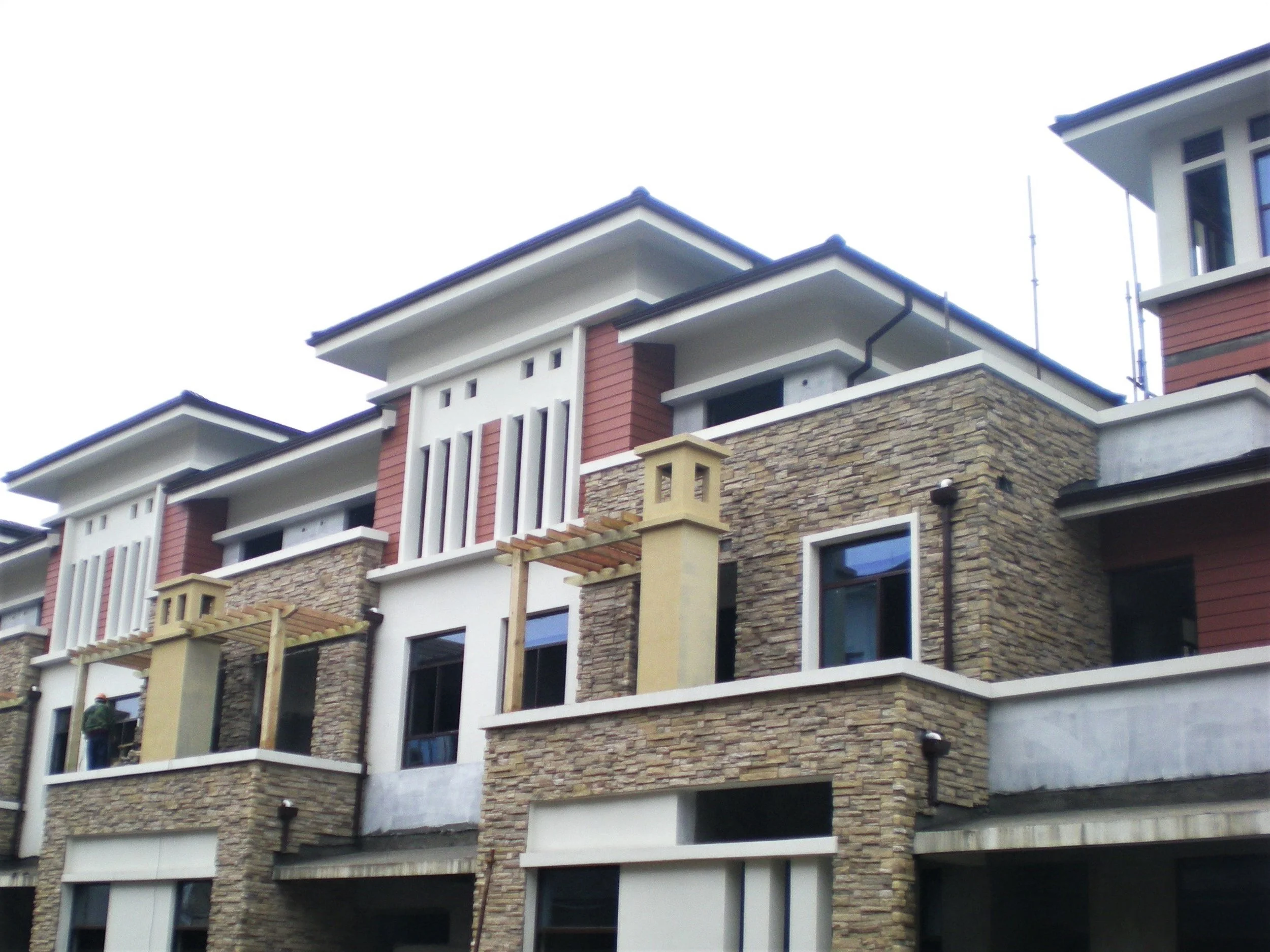

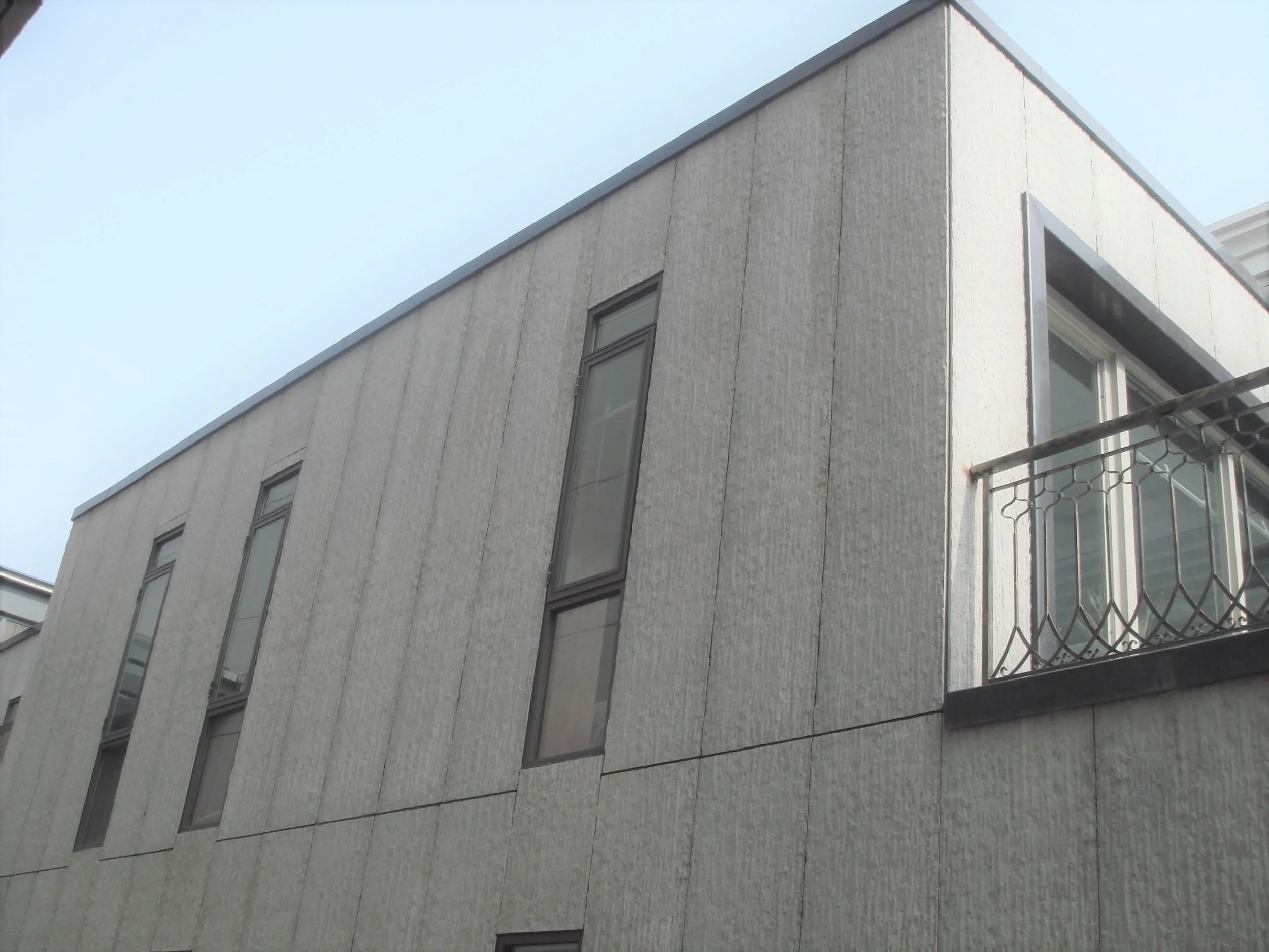

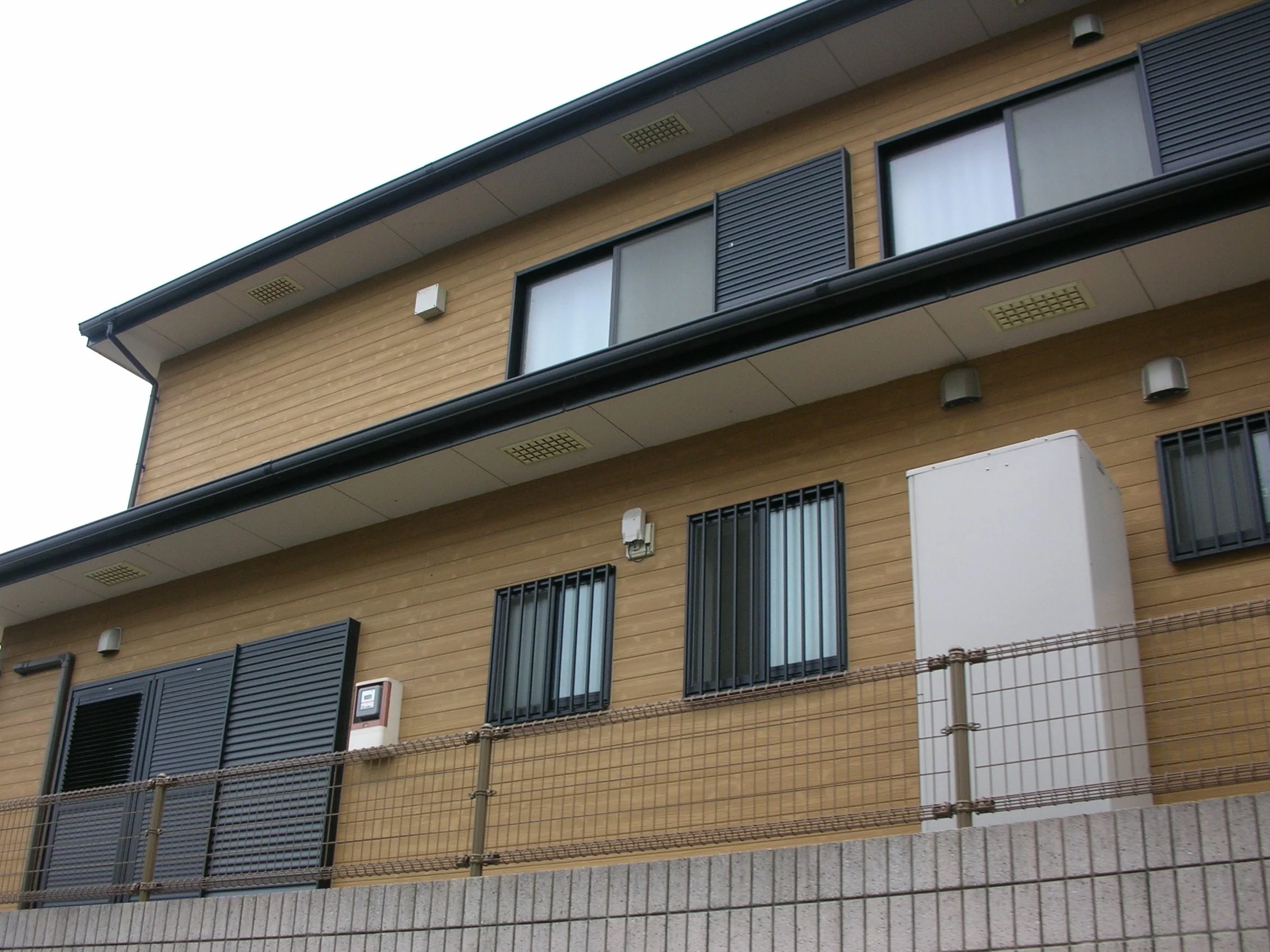

Acoustic, water and impact resistant stone-like cladding

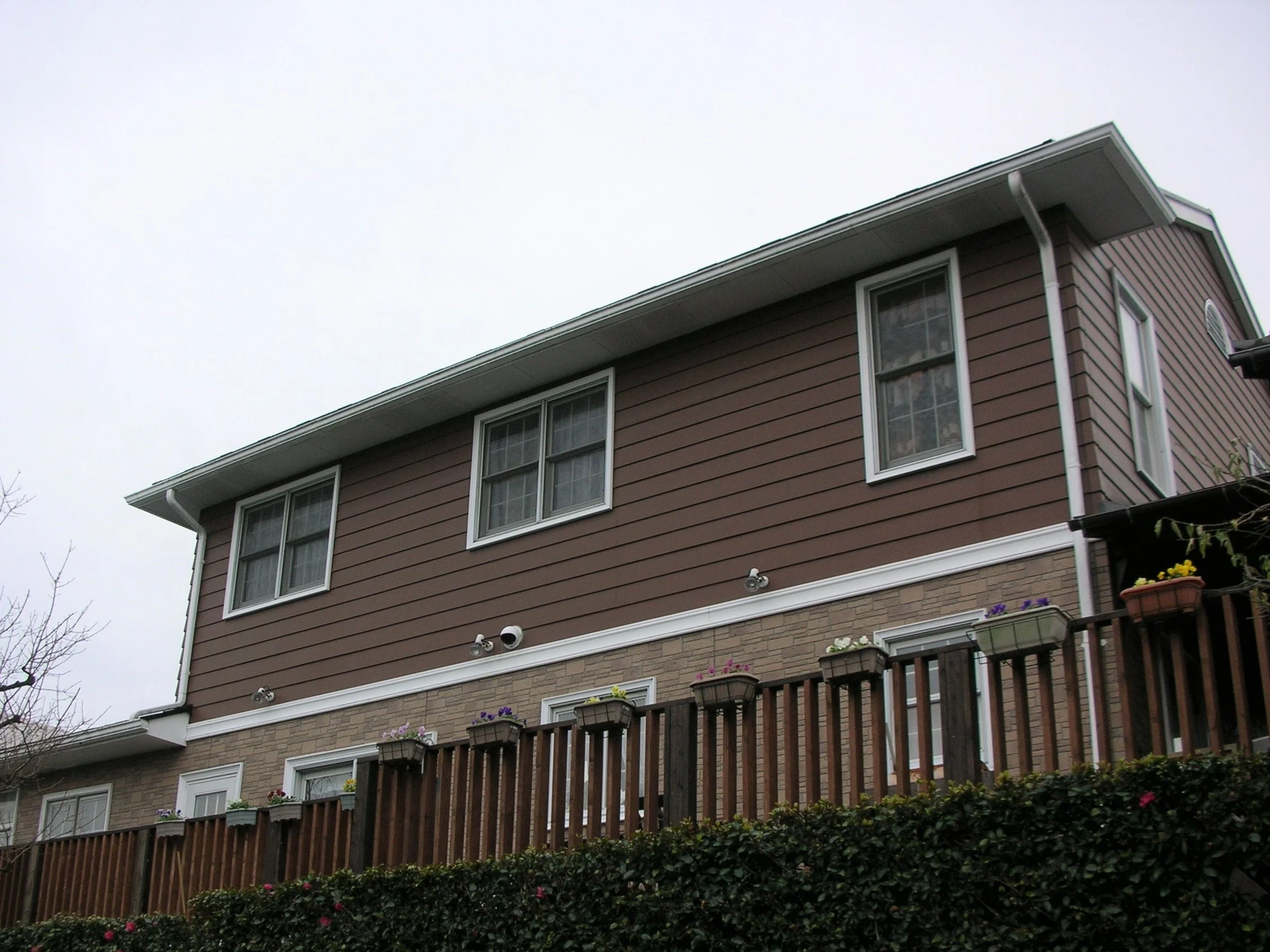

Acoustic, water and impact resistant wood-like wall planking

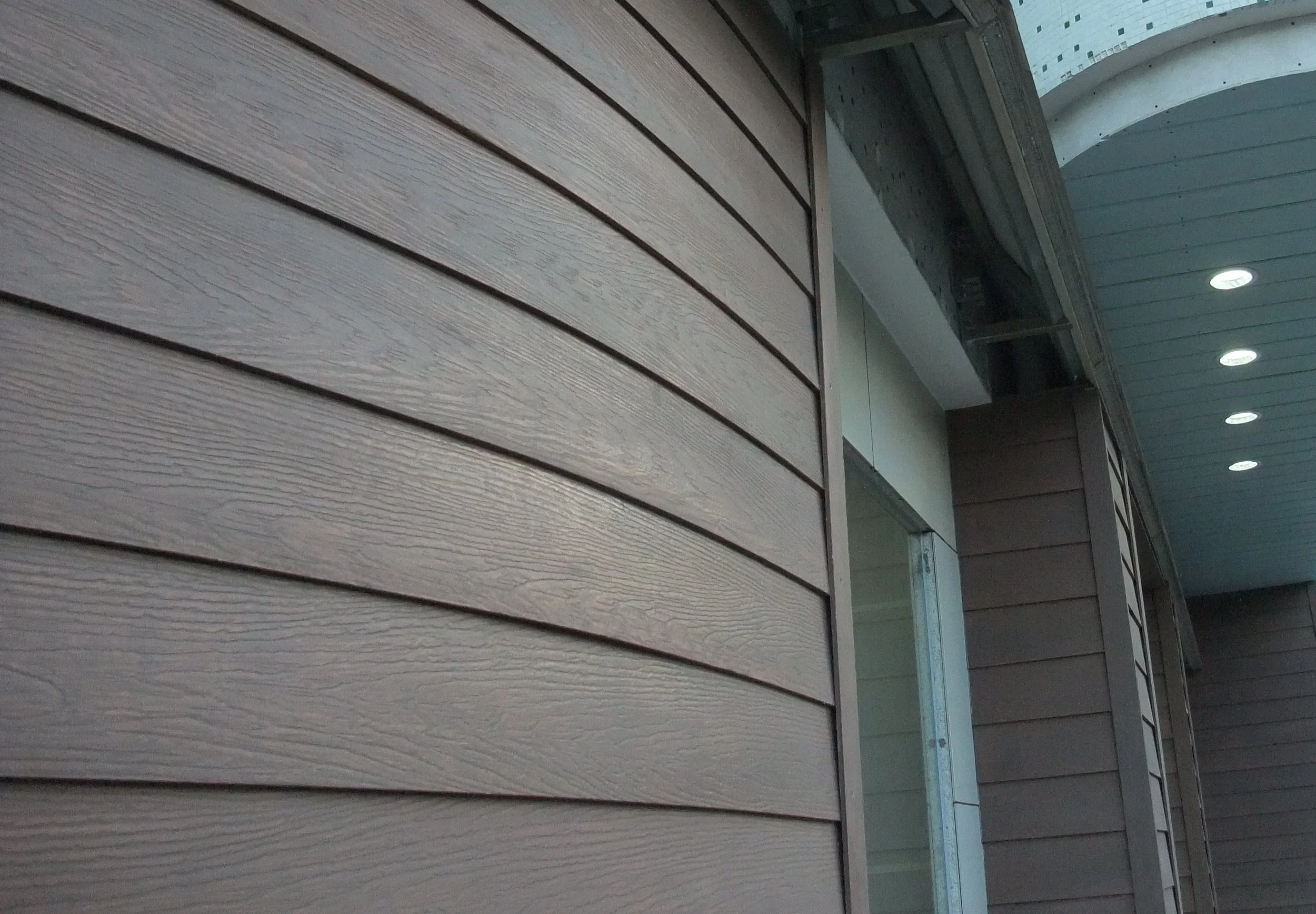

Aesthetic curved constructions
Casings for building services
Composite wall panels
Sunscreens, eaves and roof sarking boards
Finishes

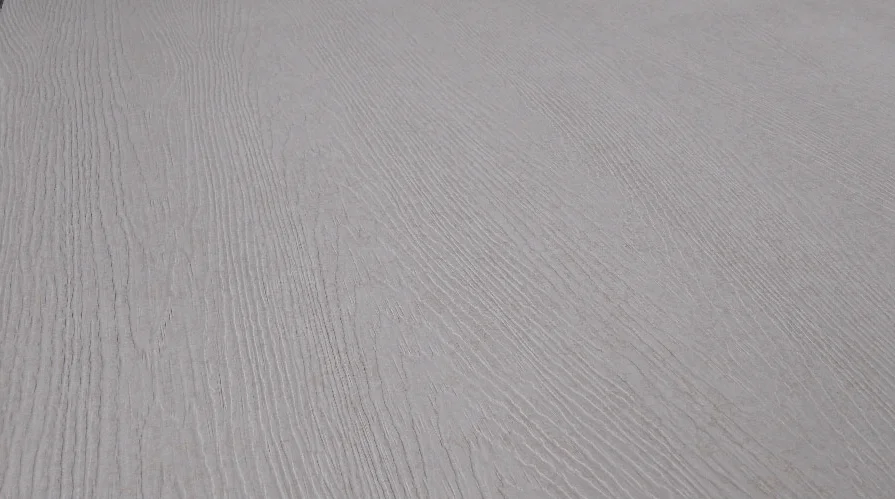

Mahogony
Ash

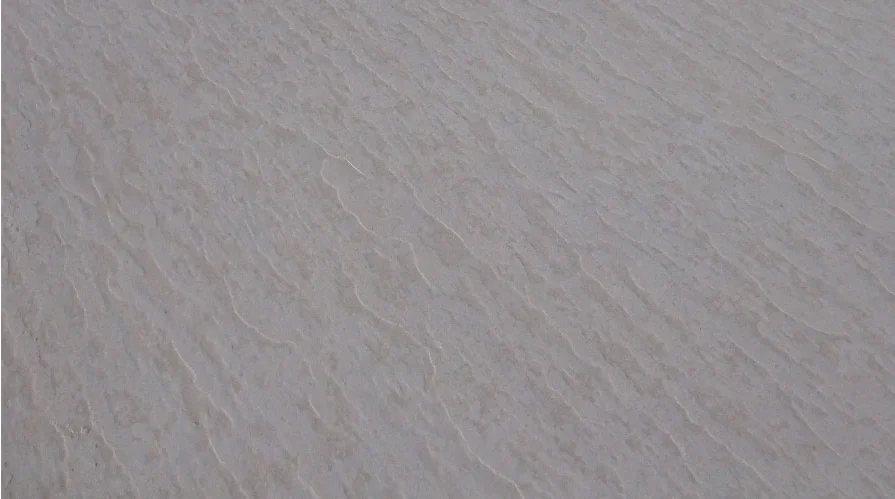

Slate

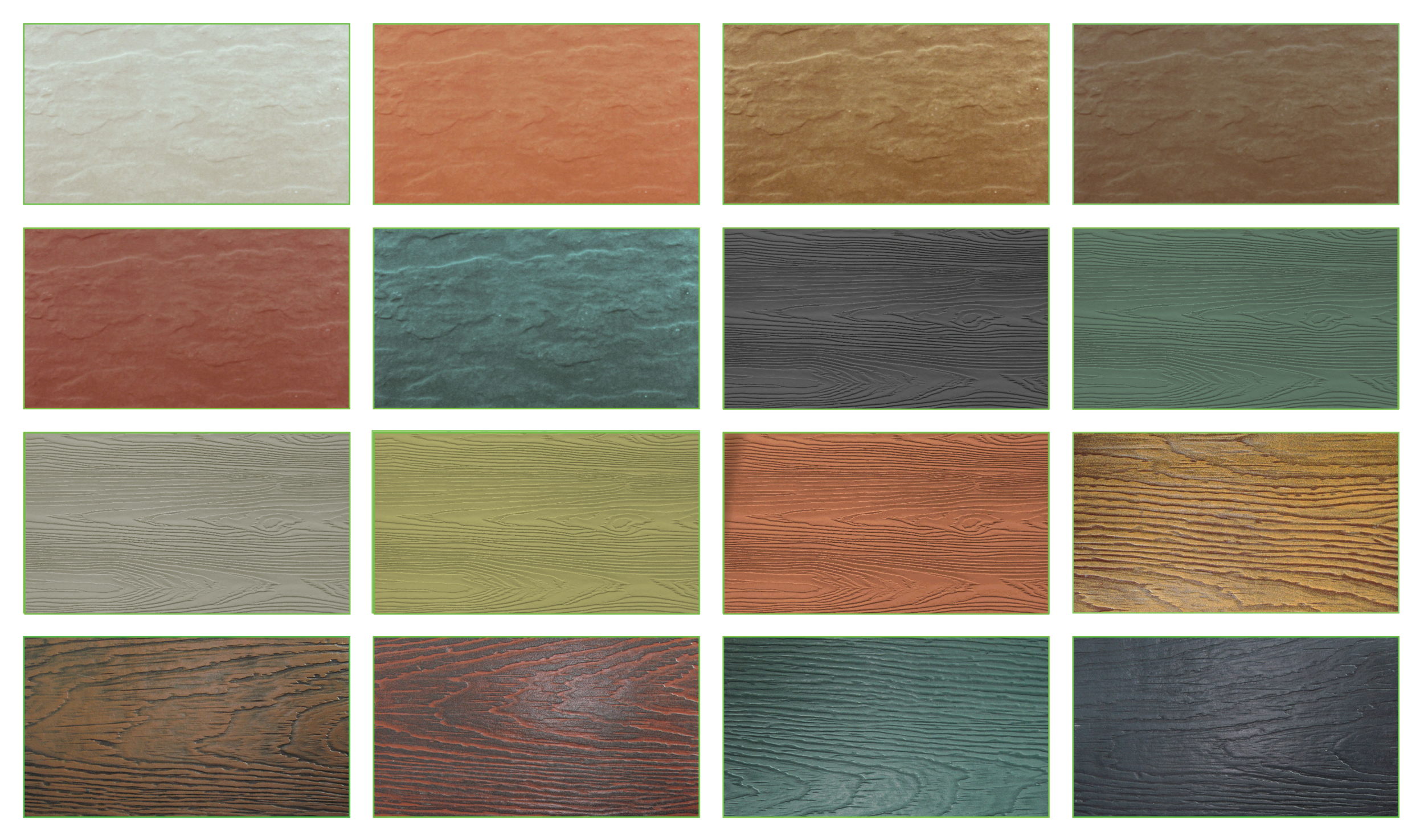

Unlimited colours with stained or painted finish
TECHNICAL PERFORMANCE
WeatherPlank®/ WeatherPro®3D Panel is eco-friendly and high performance CE marked fibre cement board having strong technical specification of international standards. It imparts extreme high durability and dimensional stability when exposed at severe weather.
| TEST | STANDARD | RESULT |
|---|---|---|
| Density | BS EN 12467 | 1300 kg/m3 +/-5% |
| Nominal weight | 10.8 kg/m2 - 8mm 13.6 kg/m2 - 10mm |
|
| Size | 190 x 3000mm 1200 x 3000mm |
|
| Surface alkalinity | pH 7-10 | |
| Flexural strength | BS EN 12467 | 9.5 N/mm2 - transverse 14.1 N/mm2 - longitudinal |
| Bending modulus | BS EN 12467 | 7100 N/mm2 - transverse 8300 N/mm2 - longitudinal |
| Minimum bending radius | 4.8m - 6mm, longitudinal 7.2m - 9mm 9.8m - 12mm |
|
| Sag when suspended at 610mm span | ambient | < 1mm |
| TEST | STANDARD | RESULT |
|---|---|---|
| Durability and strength tests | BS EN 12467 CE Marked fibre cement |
Category A sheet, intended for applications where are subjected to heat , high moisture and severe frost |
| AS/NZS 2908.2 | Type A sheet, intended for external applications where are subjected to the direct action of sun, rain and/or snow. | |
| ASTM C 1185 | External applications & cladding products | |
| Water impermeability | BS EN 12467 AS/NZS 2908.2 |
Filled with water after 24 hours, no leakage or any water drops |
| Heat-Rain | ASTM C 1185 | 50 test cycles for EN standard 25 test cycles for AS/NZS & ASTM standards No damage or leakage after test cycles of test with radiant heat 60°C |
| Warm water | ASTM C 1185 | Pass in water at 60°C for 56 days |
| Soak-dry | ASTM C 1185 | Pass 50 test cycles for EN standard 25 test cycles for AS/NZS & ASTM standards |
| Freezing and thawing | ASTM C 1185 | 100 test cycles for EN Standard 50 test cycles for AS/NZS & ASTM standards No alteration nor de-lamination after 100 cycles of test at temperature of -20°C ~ 20°C |
| TEST | STANDARD | RESULT |
|---|---|---|
| Moisture movement | Ambient to saturated | 0.05% |
| Dimensional changes in length due to relative humidity | BS EN 318 | + 0.03% @20°C, RH 30%~85% - 0.027% @20°C, RH 85%~30% |
| Moisture content | Ex works - 15% In situ - 5% |
|
| Water absorption capacity | ASTM C1185 | ~ 30% |
| TEST | STANDARD | RESULT |
|---|---|---|
| Thermal conductivity | ASTM C 518 EN 12664 |
0.34 W/mk 0.26 W/mk |
| Linear thermal expansion | BS EN ISO 10515-8 | -3.4 x 1E-7/°C |
| Resistance to continuous heating | In-house | 60°C |
| Fire rated systems | BS 476: Part 22 | up to 60 minutes |
| Non-combustible | AS 1530.1 BS 476: Part 4 BS EN ISO 1182 |
Pass |
| Heat of combustion | AS/NZS 3837 BS EN ISO 1716 |
Pass |
| Reaction to Fire - Classification | EN 13501-1 | Euro Class A1/A1FL |
| Australian Classification of fire | BCA 2011 | Group 1 |
| TEST | STANDARD | RESULT |
|---|---|---|
| Green labeled building board | Hong Kong, Singapore | Certified, no heavy metal & no harmful substance |
| Organic emission | ASTM D5116-06 | Non toxic & No formaldehyde, satisfied the emission tests |
| Recyclable product | ISO 14001 | Crushed down for recycle use, Products made under ISO 14001 environmental management system |
| TEST | STANDARD | RESULT |
|---|---|---|
| Acoustic reduction (over range 100-3150 Hz) |
AS 1276.1 & 1191 ASTM E90 & E413 EN ISO 10140-3 & 717-1 |
STC/Rw (dB) - steel framed partition 28 - 6mm 30 - 9mm 32 - 12mm |
| Note: All physical performance values of products depicted in this technical handbook are averages based on the standard production. The figures may be changed dependent on the test method used. | ||
| MOH’s Hardness | EN 101 | Hardness 2 ~ 3 |
| Impact test | BS EN 1128 | 32.48mm/mm |
